OptiMATE

An ensemble natural-language optimization solver that runs OptiMUS and OptiMind in parallel, uses an LLM judge to pick the best solution, and generates a professional consultant-grade optimization report.

Built during Stanford TreeHacks 2026, with credit to the original creators of OptiMUS and OptiMind.

---

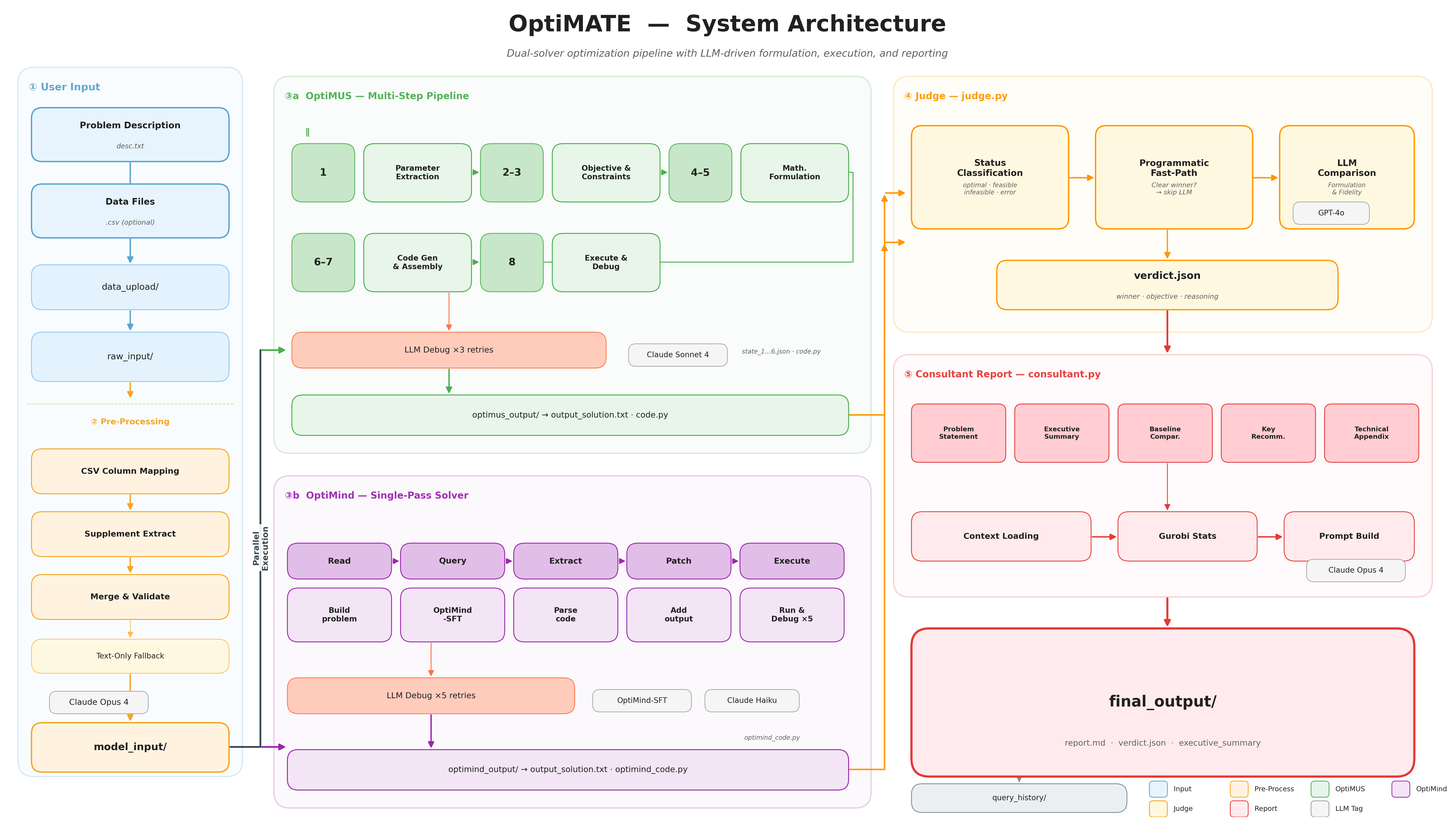

Architecture

The pipeline flows left to right through five stages:

1. User Input — A problem description (.txt) and optional data files (.csv) are uploaded through the frontend.
2. Pre-Processing — raw_to_model.py uses an LLM to extract structured parameters from raw inputs, producing desc.txt, params.json, and an optional baseline.txt.
3. Dual Solvers (parallel) — Two independent solvers race to solve the problem:
   • OptiMUS — A structured, multi-step pipeline that decomposes the problem into parameters, objectives, and constraints, formulates each mathematically, generates GurobiPy code, and executes it with an LLM-assisted debug loop (×3 retries).
   • OptiMind — Microsoft Research's fine-tuned LLM (OptiMind-SFT) that reasons step-by-step and generates executable GurobiPy code in a single pass, with its own debug loop (×5 retries).
4. Judge — Classifies solver statuses, uses a programmatic fast-path for clear winners, and falls back to GPT-4o for nuanced comparison of formulation correctness, implementation fidelity, and objective values.
5. Consultant Report — Generates a professional Markdown report with an executive summary, baseline comparison, key recommendations, and a technical appendix.

LLM Models

Stage	Provider	Model
Pre-Processing	Anthropic	claude-opus-4-20250514
OptiMUS (all steps)	Anthropic	claude-sonnet-4-20250514
OptiMind (solver)	Self-hosted (GCP)	microsoft/OptiMind-SFT
OptiMind (debug)	Anthropic	claude-haiku
Judge	OpenAI	gpt-4o
Consultant	Anthropic	claude-opus-4-20250514

---

Project Structure

OptiMATE/
├── frontend/                  Next.js web interface
│   ├── app/                   App router pages & API routes
│   ├── components/            React components
│   └── public/                Static assets
│
├── backend/                   Python optimization pipeline
│   ├── main.py                Entry point — runs the full pipeline
│   ├── raw_to_model.py        Converts raw inputs → structured model inputs
│   ├── optimus.py             OptiMUS solver entry point
│   ├── optimind.py            OptiMind solver entry point
│   ├── judge.py               Compares solutions, picks a winner
│   ├── consultant.py          Generates the final report
│   ├── query_manager.py       Workspace archiving & cleanup
│   ├── optimus_pipeline/      OptiMUS step implementations (steps 1–8)
│   ├── data_upload/           Drop input files here
│   ├── current_query/         Working directory (managed automatically)
│   │   ├── raw_input/
│   │   ├── model_input/
│   │   ├── optimus_output/
│   │   ├── optimind_output/
│   │   └── final_output/      verdict.json + report.md
│   └── query_history/         Archived runs (<timestamp>/)
│
└── README.md                  ← You are here

---

Setup

Prerequisites

• Python 3.10+
• Node.js 18+ and npm
• A valid Gurobi license (academic licenses are free)

Environment Variables

Create a .env file in the backend/ directory (gitignored):

OPENAI_API_KEY=your-openai-key
ANTHROPIC_API_KEY=your-anthropic-key
OPTIMIND_SERVER_URL=http://<VM_IP>/v1

# Gurobi WLS (cloud license — works on any machine)
GRB_WLSACCESSID=your-access-id
GRB_WLSSECRET=your-secret
GRB_LICENSEID=your-license-id

Backend

cd backend
conda activate optima
pip install -r requirements.txt

Frontend

cd frontend
npm install

Gurobi License

The pipeline generates and executes GurobiPy code. You need a valid license:

• Get one: Academic (free) or commercial. Retrieve your key from the Gurobi User Portal.
• Option A — WLS (recommended): Add your Web License Service credentials to .env (see above). Works on any machine.
• Option B — Local license file: Run grbgetkey to download gurobi.lic to ~/gurobi.lic. Only works on that machine.

---

Quick Start

Backend (CLI)

cd backend

# 1. Place your files in data_upload/
#    - A .txt file with the problem description (required)
#    - A .csv file with parameter data          (optional)

# 2. Run the pipeline
python main.py

The script clears the workspace, processes inputs, runs both solvers in parallel, judges the results, and writes the final output to current_query/final_output/.

Alternative: explicit file paths

python main.py --desc path/to/problem.txt
python main.py --desc path/to/problem.txt --data path/to/params.csv

CLI options

python main.py                                    # use data_upload/
python main.py --desc problem.txt                 # explicit desc file
python main.py --desc problem.txt --data data.csv # desc + CSV
python main.py --no-archive                       # skip archiving old results
python main.py --dir other_dir                    # different workspace

Frontend

cd frontend
npm run dev

Open http://localhost:3000 to use the web interface.

---

Pipeline Detail

What main.py does

Step	What happens
1	Archive + clear current_query/
2	Copy uploaded files into current_query/raw_input/
3	raw_to_model — LLM converts raw inputs to model_input/desc.txt + params.json
4	optimus + optimind — run in parallel (structured multi-step solver + single-pass LLM solver)
5	judge — compares both solutions, picks a winner
6	consultant — generates a professional Markdown report with baseline comparison

If one solver fails, the other's result is still judged. If both fail, you get a clear error.

---

Backend Components

raw_to_model.py — Pre-Processing

Converts raw_input/ into model_input/. Two modes, chosen automatically:

• CSV+Text mode (raw_desc.txt + CSVs): LLM maps CSV columns to optimization parameters, then extracts additional numeric constants from the description text. Merges both sources.
• Text mode (raw_desc.txt only): LLM extracts parameters directly from prose.

OptiMUS — Multi-Step Structured Pipeline

Decomposes the problem into parameters, objectives, and constraints, formulates each mathematically, generates code, then executes and debugs it. Steps 2 and 3 run in parallel.

Step	File	What it does
1	step01_parameters.py	Extract parameters from the problem description
2	step02_objective.py	Identify the optimization objective (parallel with 3)
3	step03_constraints.py	Extract constraints (parallel with 2)
4	step04_constraint_model.py	Formulate constraints in LaTeX
5	step05_objective_model.py	Formulate objective in LaTeX
6	step06_target_code.py	Generate GurobiPy code for each constraint/objective
7	step07_generate_code.py	Assemble the complete solver script
8	step08_execute_code.py	Execute the script; if it errors, reflect and retry

All step files live in optimus_pipeline/.

OptiMind — Single-Pass LLM Solver

Microsoft Research's fine-tuned LLM for optimization. Given a natural-language problem, it reasons step-by-step and generates executable GurobiPy code in a single pass.

• Model: microsoft/OptiMind-SFT (20B params, MoE architecture with 3.6B activated)
• Serving: Self-hosted on a GCP VM with NVIDIA L4 GPU (24GB VRAM), served via llama.cpp with Q4_K_M quantization
• Paper: OptiMind: Teaching LLMs to Think Like Optimization Experts

OptiMind Deployment

The full-precision model (~40GB BF16) exceeds the L4's 24GB VRAM. We use offline quantization via llama.cpp's GGUF format:

1. Build llama.cpp from source with CUDA support
2. Convert HuggingFace safetensors to GGUF Q8_0 intermediate (~22GB)
3. Quantize to Q4_K_M (~15GB, fits in 24GB VRAM)
4. Serve with llama-server with all layers offloaded to GPU

An nginx reverse proxy on port 80 forwards to llama-server on port 30000. For step-by-step setup, see backend/docs/OPTIMIND_GOOGLE_CLOUD_SETUP.md.

Judge — Solution Comparison

1. Status classification — optimal, feasible, infeasible, unbounded, error, no_result
2. Programmatic fast-path — Clear winners (one crashed, one succeeded) skip the LLM
3. LLM comparison — GPT-4o evaluates formulation correctness, fidelity, and objective value
4. Sanity override — Prevents the LLM from picking crashed solvers

Consultant — Report Generation

Produces a professional client-ready Markdown report:

• Executive Summary — C-suite ready, no jargon
• Baseline Comparison — Compares against the client's current strategy (from baseline.txt)
• Key Recommendations — Numbered, actionable implementation steps
• Technical Appendix — Mathematical formulation, variable values, solver statistics, and code

---

Known Issues & Future Work

1. OptiMind: Data Truncation in Generated Code

Problem: OptiMind receives full raw parameter values in its prompt (e.g. 1,190-element vectors). The LLM cannot reproduce all values in generated code, so it truncates arrays, causing runtime crashes.

Proposed fix: Change _read_problem() so it provides a data summary instead of raw values, and instruct the LLM to read params.json from disk at runtime.

2. OptiMUS: Fragile Constraint Formulation Parser

Problem: Character-by-character string scanning in step04_constraint_model.py breaks when the LLM formats responses slightly differently than expected.

Proposed fix: Replace with regex-based extraction or a two-pass strategy (extract JSON first, then pull LaTeX from JSON values).

3. Constraint Description Format Inconsistency

Problem: Step 3 sometimes returns constraint descriptions as nested dicts instead of plain strings, confusing downstream steps.

Proposed fix: Add a normalization step that ensures every constraint description is a plain string.

4. Baseline Extraction from User Input

Problem: baseline.txt must be manually created. No automated way to separate a user's input into problem description and baseline strategy.

Proposed fix: Add a preprocessing LLM step that splits raw input into desc.txt and baseline.txt.

5. Inaccurate Parameter Extraction from CSVs

Problem: raw_to_model.py frequently produces incorrect results with structured CSV formats (flattening key-value data, missing parameters, type confusion).

Proposed fixes: Stronger prompt engineering with more sample rows, multi-pass extraction with validation, schema detection pre-step, or human-in-the-loop review.
