SignCast — Real-time ASL Interpretation Pipeline

Converts any video or audio source into a live ASL sign sequence for Deaf viewers.

Audio source (file/URL, or live browser tab capture)
    → audio_extractor.py   (raw PCM bytes)            \_ stt_service.py picks one
    → pipeline_server.py    (live browser audio relay) /
    → stt_service.py       (Deepgram → transcript text, buffered into utterances)
    → gloss_pipeline.py    (Claude → ASL sign/fingerspell steps, verified against WLASL)
    → pipeline_server.py   (WebSocket broadcast + WLASL clips served over HTTP)
    → frontend/            (browser overlay plays the clips, in sync with the video)

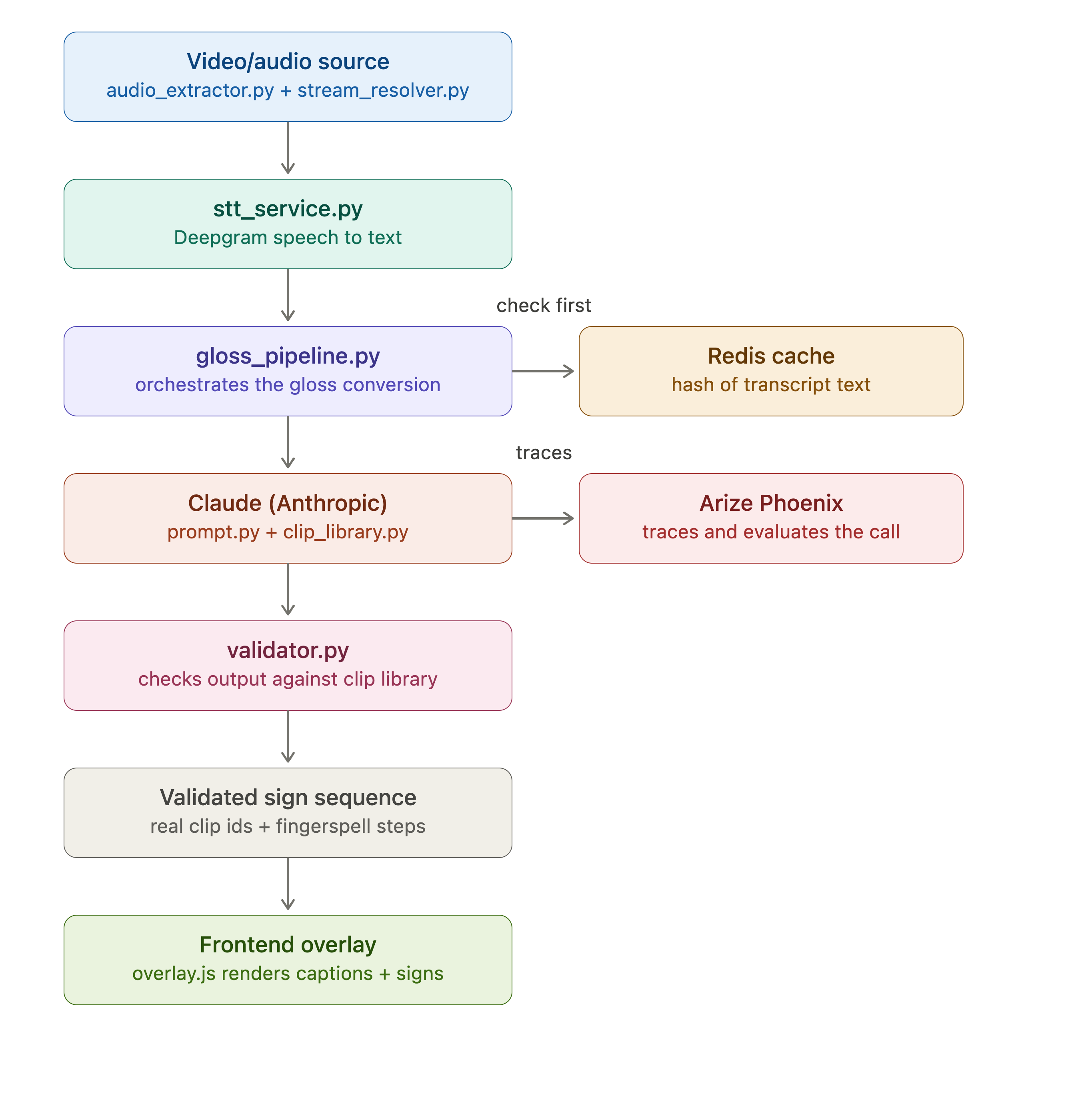

System architecture

Files

• audio_extractor.py — pulls audio from any source (local file, HLS, RTMP, HTTP stream), decodes to real-time 16kHz mono PCM, emits bytes via on_audio. Used when stt_service.py is given a file/URL directly.
• stream_resolver.py — resolves YouTube / yt-dlp-supported URLs into something ffmpeg can consume. download=True downloads first to avoid truncating the first few words.
• stt_service.py — feeds PCM bytes to Deepgram (from audio_extractor or, with --from-browser, from live browser tab audio via pipeline_server), buffers fragments into complete utterances (on speech_final), sends each to gloss_pipeline, and broadcasts the result over WebSocket.
• prompt.py — builds the Claude system prompt. Claude freely picks the simplest common English word per concept; no fixed vocabulary list.
• validator.py — validates the shape of Claude's JSON output (well-formed steps), not vocabulary membership.
• gloss_pipeline.py — calls Claude to convert a transcript string into sign/fingerspell steps, then checks each "sign" step against wlasl_lookup and demotes unmatched ones to fingerspelling.
• wlasl_lookup.py — looks up a gloss word directly against a local WLASL dataset (WLASL_v0.3.json + videos/) on every call. No pre-curation step.
• pipeline_server.py — FastAPI/WebSocket bridge. Serves WLASL clips over HTTP at /clips/<id>.mp4, broadcasts {clipUrl, gloss, caption, ts, lang} events per word to frontend/ over /ws, and (in --from-browser mode) receives live PCM from frontend/audio-capture.js over /audio-in.
• frontend/ — the browser overlay (see its own section below) that actually displays the sign clips, draggable/resizable on top of the YouTube player.
• sign_window.py — standalone native OpenCV window for local testing/debugging without a browser (python sign_window.py "GOAL TEAM" or --file glosses.txt). Not used by the live stt_service.py pipeline anymore — the browser overlay is the real output now.
• glosses.txt — a sample word list for testing sign_window.py --file glosses.txt directly.

Setup

1. Install dependencies:

   pip install -r requirements.txt


2. Set API keys in .env:

   DEEPGRAM_API_KEY=...
   ANTHROPIC_API_KEY=...


3. Point wlasl_lookup.py at your local WLASL dataset (defaults to C:\Users\hp\Downloads\wlasl-processed, override with the WLASL_DIR env var):

   WLASL_DIR=/path/to/wlasl-processed


4. Run it directly on a file/URL (prints transcripts/gloss; nothing to watch unless you also open frontend/):

   python stt_service.py <file-or-stream-url>
   python stt_service.py "https://www.youtube.com/watch?v=VIDEO_ID" --duration 20 --download


   Or run it against live browser audio (the real demo path — see "Frontend overlay" below):

   python stt_service.py --from-browser --duration 60


5. Open the overlay (separate terminal):

   cd frontend && python -m http.server 5500


   Go to http://localhost:5500, load any YouTube video via the picker, click Start audio capture, and pick "This Tab" + check "Share tab audio" in the browser's permission dialog. The overlay plays signs live, matching whatever's actually playing in that tab.

Next steps

• Pass rolling context (previous utterance) into gloss_pipeline.process_transcript(context=...) for better continuity across sentences.
• Add a real fingerspelling clip set (currently fingerspell steps just show a text placeholder, no per-letter clips).

---

SignCast · Sign-Language Accessibility (team scope)

Three pieces toward the team's goal — a sign-language layer that live-translates match commentary for Deaf and hard-of-hearing fans.

Piece	Folder	What it does
Validation agent	validation/	Auto-generates test commentary for 5 sign languages, runs the translator, grades each output on 5 metrics with Claude-as-judge, writes a report.
Frontend overlay	frontend/	Web app embedding a YouTube live with a translucent, draggable, resizable sign-language video overlay you can place in any corner; switch among ASL/BSL/LSF/CSL/JSL.
Real pipeline	stt_service.py + pipeline_server.py	The working backend — Deepgram → Claude gloss → WLASL clips, broadcast to the overlay over WebSocket. Replaces the old mock pipeline entirely (ASL only for now; BSL/LSF/CSL/JSL in the dropdown are unimplemented).

Sign languages: ASL, BSL, LSF (French), CSL (Chinese), JSL (Japanese).

---

1. Validation agent

cd validation
pip install -r requirements.txt
export ANTHROPIC_API_KEY=sk-...
# optional: export ANTHROPIC_MODEL=claude-sonnet-4-5
python agent.py            # 1 test case per scenario per language
python agent.py --per 2    # more cases

Output: validation/reports/validation_report.md — a table of 5 languages × 5 metrics (grammatical accuracy, semantic accuracy, completeness, gloss validity, real-time fluency), overall scores, and the weakest cases flagged.

Pipeline: testgen.py (writes cases) → translator.py (the system under test: English → SL gloss) → judge.py (Claude-as-judge, 1–5 per metric) → report.py.

Optional live dashboard: observability.py adds an Arize Phoenix tracing layer on top — no-op unless USE_PHOENIX=1 is set, so python agent.py behaves identically with or without it. See validation/PHOENIX_SETUP.md for setup; the short version:

export USE_PHOENIX=1
python agent.py --per 2

prints a Phoenix UI URL (default http://localhost:6006) showing every traced translate→judge span with its 5 scores, sortable worst-first.

2. Frontend overlay

cd frontend
python -m http.server 5500
# open http://localhost:5500

• Change the match: set window.YT_VIDEO_ID (in youtube.js) to any YouTube video/live id.
• Point at a different pipeline: set window.PIPELINE_WS (default ws://localhost:8000/ws).
• Drag the overlay by its header, resize from the bottom-right handle, place it in any corner with the corner picker, switch sign language with the dropdown.

3. Real pipeline (replaces the old mock)

python stt_service.py --from-browser

Starts pipeline_server.py automatically (no separate process needed). Emits one clip event per gloss word:

{ "clipUrl": "http://localhost:8000/clips/24872.mp4", "gloss": "GOAL", "caption": "the team scored a goal", "ts": 0, "lang": "ASL" }

Demo

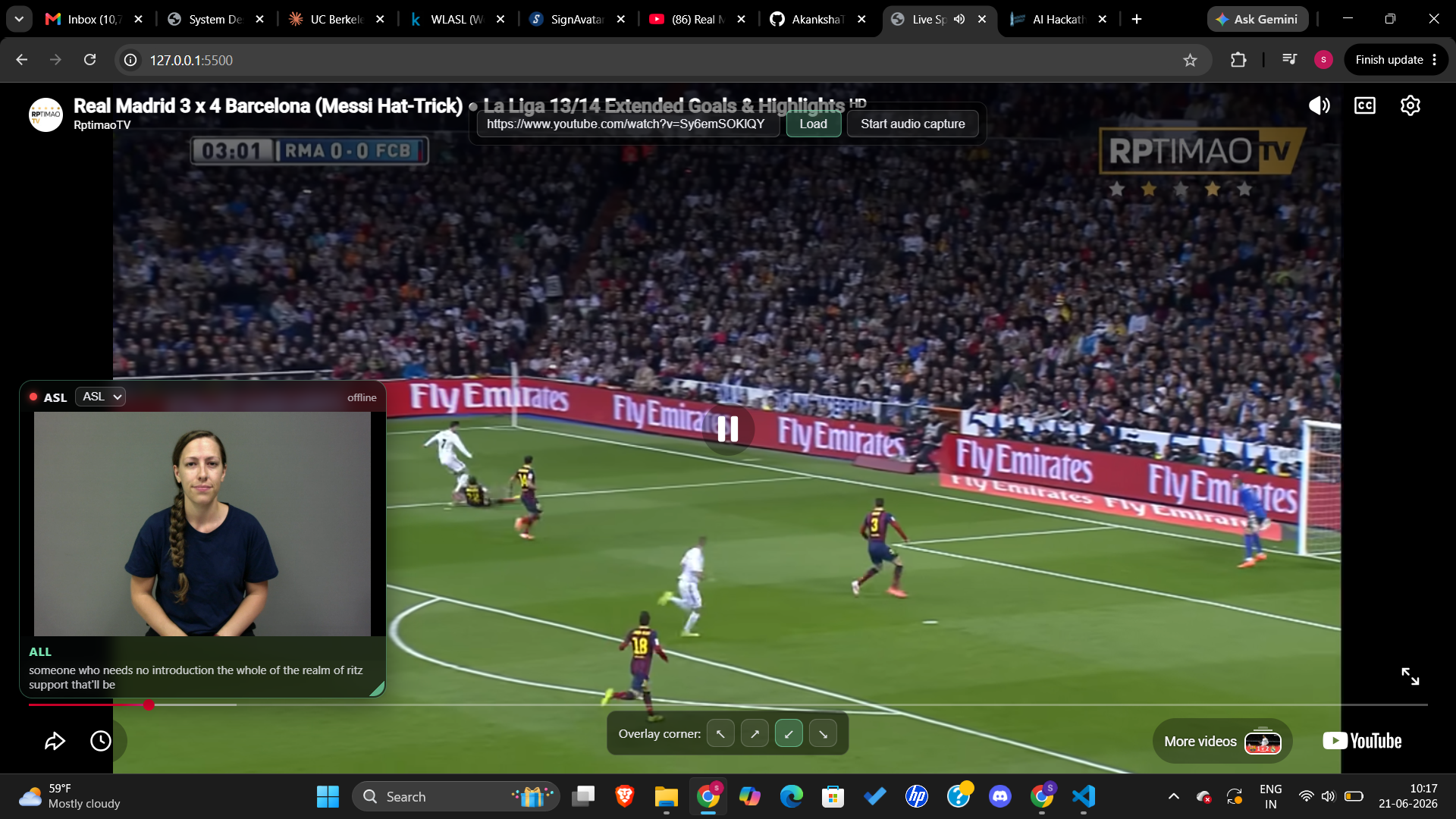

A screenshot of the system

Youtube Demo Link: Demo Link

---

Quick full-demo run order

1. Terminal A: python stt_service.py --from-browser (waits for browser audio; starts pipeline_server on port 8000)
2. Terminal B: cd frontend && python -m http.server 5500
3. Browser: http://localhost:5500 → load a video, click Start audio capture, share the tab's audio → live signing overlay.
4. (Separately) cd validation && python agent.py → show the quality report.

Notes / known gaps

• Only ASL is implemented (via the WLASL dataset) — BSL/LSF/CSL/JSL exist in the language dropdown but have no backing clips or translation yet.
• gloss_pipeline.py picks plain English words and verifies them live against the local WLASL clip set — no pre-built clip library or Midjourney/Redis step.
