Pin Pal

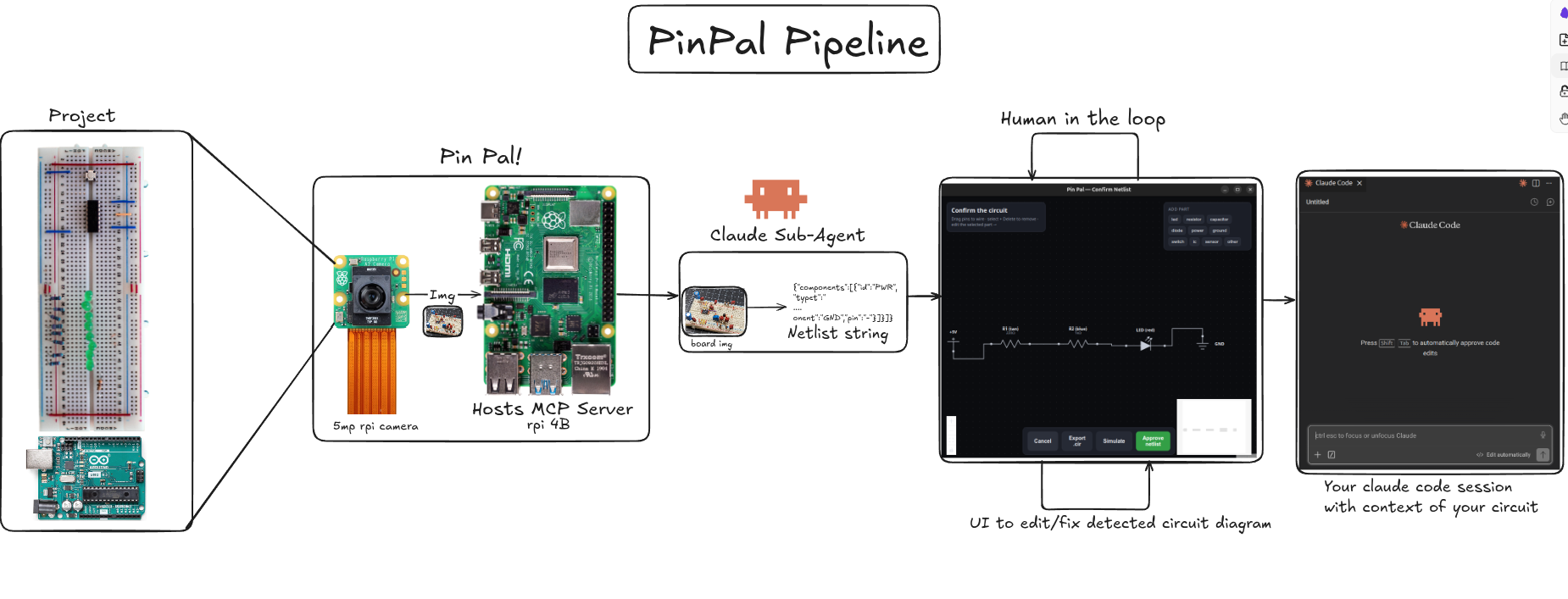

A Raspberry Pi that clips onto a breadboard and gives Claude Code real hardware senses — I2C, GPIO, serial, and a camera — plus the ability to flash firmware and run code on a target board. You talk to Claude Code on your own laptop; it calls out to the Pi to look at and act on whatever's wired up.

This doc is the practical "how do I actually use this" guide. For the full design rationale (why vision is never trusted alone, the netlist pipeline, etc.) see app/PIN_PAL.md.

What works right now

• The Pi (hostname pinpal, reachable as pinpal.local) runs all 6 tools: scan_i2c, read_gpio, read_serial, capture_image, flash_firmware, deploy_run. Once its owner has run ./pi/provision.sh once, the dependencies are installed and the venv auto-activates on login — start the server by hand with python pi/server.py.
• The camera works and is verified.
• No target board or sensor is wired up by default. Until you connect one, scan_i2c will report an empty bus and read_serial/flash_firmware have nothing to talk to — that's expected, not broken. capture_image and basic GPIO reads still work with no target attached.
• flash_firmware's toolchains (arduino-cli, esptool, mpremote) aren't installed on the Pi yet — that happens whenever someone first needs to flash an actual board.
• The netlist/web-verification UI (a teammate's separate companion service) is not merged into main yet and isn't part of this flow.

Pi owner: one-time setup

If you're the one who owns the Pi, run this once on the Pi to set up its dependencies:

./pi/provision.sh

It installs system deps, enables I2C, sets the hostname to pinpal (so it advertises pinpal.local), builds a --system-site-packages venv, and auto-activates that venv on login — after which you can start the probe server by hand with python pi/server.py (no venv to reactivate). Everyone else skips this and goes straight to step 1.

1. Connect Claude Code to the Pi

You need: this repo cloned, git/ssh available, and Claude Code installed.

./scripts/pinpal_connect.sh

First time only: this will fail and print a public key line. Send that line to whoever manages the Pi. On their own laptop (not on the Pi itself — the script SSHs into the Pi remotely, it doesn't run there), they run:

./scripts/pinpal_authorize.sh "<the line you were sent>"

Then re-run ./scripts/pinpal_connect.sh yourself. It should now succeed: it opens a self-healing SSH tunnel (auto-reconnects if it drops) and registers the Pi with Claude Code automatically. You won't need to repeat this step again on this machine.

The script finds the Pi at pinpal.local over mDNS — no IP to configure. On Linux that needs avahi-daemon/libnss-mdns installed (macOS has it built in); if mDNS isn't available, pass the Pi's IP directly: PINPAL_HOST=<pi-ip> ./scripts/pinpal_connect.sh.

Connection is always over the SSH tunnel — never a direct LAN/HTTP connection to the Pi. The tunnel forwards a local port to the Pi's :8000, so Claude Code talks to localhost and SSH carries the traffic (works across networks, encrypted, and survives WiFi drops).

2. Start a fresh Claude Code session

MCP connections are only picked up when a session starts — if you had Claude Code open before running the connect script, close it and start a new session now.

Verify it worked:

claude mcp list

You should see pin-pal ... ✔ Connected.

3. Try it

Just talk to Claude Code in plain English — it decides which tool to call.

• "Take a picture of the breadboard" → calls capture_image, returns a real photo from the Pi's camera.
• "Is anything on the I2C bus?" → calls scan_i2c. With nothing wired up, expect an empty list — that's correct, not an error.
• "Read GPIO pin 17" → calls read_gpio, reports HIGH/LOW.
• "My sensor isn't reading anything" (once you have one wired up) → Claude scans the bus, checks the relevant pins, looks at a photo, and gives you a single diagnosis instead of just one tool's output.
• "Flash this code to the Arduino and check the serial output" (once a board is plugged in via USB) → drives the full write-then-observe loop.

Known rough edges right now

• This session's tools won't reach the Pi until you've completed step 1 and started a fresh session (step 2) — reusing an old session is the most common reason "nothing happens."
• Captured images are never saved anywhere — each capture_image call returns the photo directly into that one conversation and nothing is persisted on the Pi or in this repo.
• No vision-reliability calibration ("vision spike") has been done yet, so there's no documented answer yet for how much to trust the camera on a dense/cluttered board — always treat a visual claim as a guess until scan_i2c/read_gpio confirms it.
