narcore

A dark, focused web foundation for high-stakes government tooling.

Stack

• Next.js (App Router) + React 19 + TypeScript
• Tailwind CSS v4 — CSS-first config via @theme (no tailwind.config.js)
• shadcn/ui (Base UI primitives, Lucide icons)
• next-themes — dark-first theming

Getting started

pnpm install
pnpm dev          # http://localhost:3000

Other scripts:

pnpm build        # production build (type-check + lint + compile)
pnpm start        # serve the production build
pnpm lint         # ESLint

Uses pnpm. Install it with npm i -g pnpm (or via Corepack) if needed.

Project layout

src/
  app/
    layout.tsx        # fonts, dark-default ThemeProvider, metadata
    globals.css       # design tokens — single source of truth (dark + azure)
    page.tsx          # starter page
  components/
    ui/               # shadcn/ui primitives (e.g. button)
    theme-provider.tsx
    logo.tsx          # brand mark
  lib/
    utils.ts          # cn() class merge helper
components.json       # shadcn/ui config
brand.md              # brand & UI guidelines

NARCORE — Technical Architecture

A field guide to how the system actually works. Focused on the core engine: the parallel scraper fleets, the undercover outreach operative, and the infrastructure underneath them (Browserbase, Redis, embeddings, and the LLMs).

---

1. The Big Picture

NARCORE is a closed-loop system that does three things and feeds each one back into the next:

1. Detect — parallel browser agents scrape Instagram hashtags, and every post is risk-scored using semantic (vector) similarity against a corpus of known drug-dealing language.
2. Engage — a human operator launches an undercover "operative" against a flagged seller. An LLM-driven agent negotiates over Instagram DMs toward two objectives: confirm the deal and confirm a meeting location.
3. Learn — every confirmed engagement teaches the system. New coded slang is extracted from the seller's own words and added to the detection corpus (R1), and the successful tactics are stored as long-term memory to prime the next operative (R2).

   ┌─────────────┐     flagged      ┌──────────────┐    confirmed     ┌────────────┐
   │  DETECT     │  ───────────────▶│   ENGAGE     │ ───────────────▶ │   LEARN    │
   │ scraper     │      lead        │  operative   │   deal+location  │  R1 corpus │
   │ fleet (×N)  │                  │  (LLM + DM)  │                  │  R2 memory │
   └─────────────┘                  └──────────────┘                  └────────────┘
         ▲                                                                   │
         └───────────────── grown corpus re-flags more posts ◀──────────────┘

Everything is coordinated through a single Redis instance, which acts as the vector database, the state store, the job registry, and the event bus all at once.

---

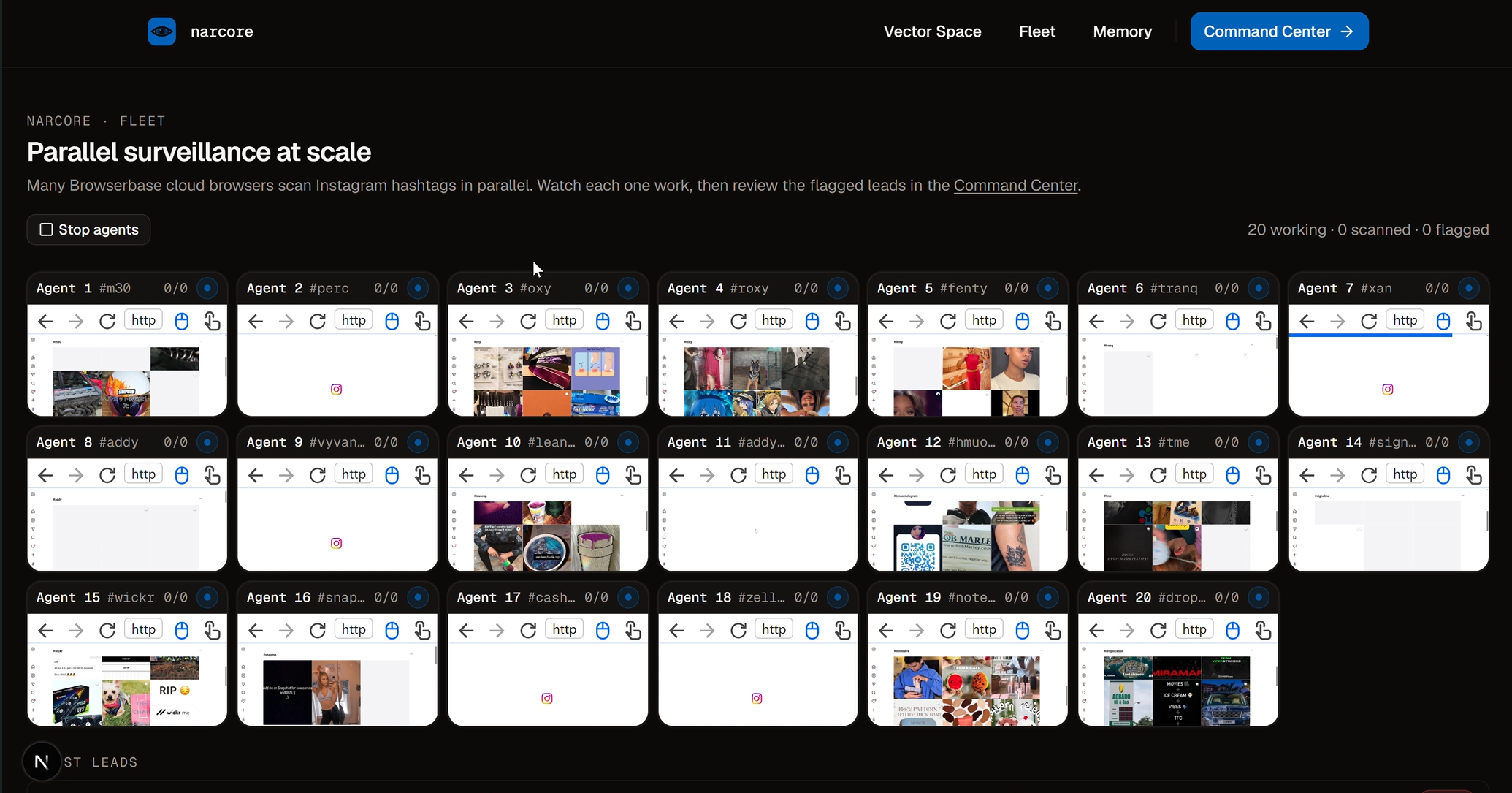

2. Parallel Scraper Fleets

What it is: N independent browser agents (default 5, configurable 1–20) that each drive a real Instagram session in parallel, scrape a hashtag feed, and push every post into the scoring pipeline.

Key files: src/lib/agents/orchestrator.ts, src/lib/agents/ig-agent.ts, src/lib/agents/run-store.ts

How a fleet launches

1. POST /api/agents/run → startRun() resolves the agent count and assigns each agent a distinct Instagram hashtag target.
2. All N Browserbase sessions are provisioned up front and in parallel (Promise.all over provisionAgent()), so the live-view URLs exist before any scraping begins — the UI can render the video grid immediately.
3. Each agent's loop (runAgentLoop) is fired un-awaited (void). The HTTP request returns instantly; the agents keep running in the background.
4. The UI polls Redis for progress rather than holding an open connection.

Why there are no race conditions

Every agent owns its own Redis hash: run:{id}:agent:{idx}. An agent only ever patches its own key, so five siblings writing concurrently never collide — no locks needed. The run is marked done only when all agents reach a terminal state (done, blocked, error, or stopped).

Budgets (per agent)

Setting	Default	Meaning
IG_AGENT_TIMEOUT_MS	120s	Wall-clock budget per agent
IG_MAX_POSTS_PER_AGENT	8	Posts captured before stopping

Cancellation

stopRun() immediately marks the run stopped, aborts every agent's AbortController, and releases all Browserbase sessions in parallel. The UI sees a clean terminal state right away.

---

3. The Undercover Operative (Outreach)

What it is: A single LLM-driven agent that opens an Instagram DM with a flagged seller and negotiates, turn by turn, toward two confirmations. Unlike the fleet, operations run one at a time per post (deduped) and have a much longer budget because real conversations take time.

Key files: src/lib/agents/operation-orchestrator.ts, scraper/operative-agent.ts, src/lib/operative-brain.ts, src/lib/agents/operation-store.ts

Launch flow (startOperation)

1. Preconditions: ANTHROPIC_API_KEY must be set, at least one logged-in Browserbase context must exist, and the target handle must pass the allowlist gate (OPERATIVE_ALLOWLIST_ENFORCED=true — this must never be off in a live demo; it restricts targets to consented demo accounts).
2. Dedup: op:by-post:{postId} ensures the same post can't launch two operations at once.
3. A Browserbase session is created, an Operation record is written to Redis with status opening, and the operative loop fires un-awaited (same fire-and-forget + poll pattern as the fleet).

The negotiation loop

The operative tracks two objectives independently so the UI can show live state like "Deal ✓ · Location ✗" even mid-conversation.

open DM thread  →  brain composes opener  →  ┌─────────────────────────────┐
                                             │  send message (verify it     │
                                             │  landed, up to 3 retries)    │
                                             │  wait for seller reply       │
                                             │  brain analyzes transcript   │
                                             │  patch deal/location state   │
                                             └──────────────┬──────────────┘
                                                            │
            both confirmed? ── yes ──▶ send closer, mark "confirmed", trigger R1+R2
                  │ no
            rejected / stalled / max turns? ── yes ──▶ terminal
                  │ no
                  └──▶ loop

Opening a DM thread uses one of two strategies (OPERATIVE_DM_OPEN_STRATEGY):

• ladder (default): a hand-rolled observe → act sequence (try the profile "Message" button, fall back to DM-inbox search).
• agent: a self-healing DOM-mode Stagehand agent that figures out the steps itself (more robust, more expensive).

Budgets (per operation)

Setting	Default	Meaning
OPERATIVE_BUDGET_MS	25 min	Total wall-clock per negotiation
OPERATIVE_REPLY_WAIT_MS	4 min	Max wait for each seller reply
OPERATIVE_POLL_MS	15s	How often the thread is checked for new replies
OPERATIVE_MAX_TURNS	12	Max back-and-forth exchanges

Operation states

opening → awaiting_reply → analyzing → negotiating and then a terminal state: confirmed (both objectives met), rejected, stalled (ran out of budget/turns), blocked (login wall), error, or stopped (operator aborted).

The Operative Brain (the LLM call)

negotiate() in src/lib/operative-brain.ts makes one Claude call per turn. It is given the lead context, the full transcript so far, and any recalled prior intel, and it is forced to call a submit_negotiation_step tool so the output is always structured:

NegotiationStep {
  analysis: {
    dealConfirmed, locationConfirmed,   // the two objectives
    meetingLocation, meetingTime,       // verbatim, if agreed
    rejection, confidence, reasoning
  },
  nextMessage: string | null,           // the operative's next DM (null = done)
  done: boolean
}

• Model: OPERATIVE_MODEL (default claude-sonnet-4-6)
• Load-bearing: yes — operations fail fast if the API key is missing.

---

4. Browserbase — The Browser Layer

What it is: Browserbase provides the actual cloud browser sessions, residential proxies, and persistent logged-in "contexts" that both fleets and operatives attach to. Stagehand (an AI browser-automation library) drives those sessions.

Key files: src/lib/browserbase.ts, scripts/ig-login.ts, src/lib/session-identity.ts

Sessions vs. Contexts

• A context is a persistent, logged-in Instagram profile (cookies + storage). Created once via pnpm ig:login, then reused.
• A session is a single live browser instance bound to a context. Both fleets and operatives create fresh sessions on top of an existing context, all through one chokepoint — createIgSession() — which guarantees consistent settings.
• getLiveViewUrl() returns a read-only CDP stream so the UI can show the agent's browser live.

Identity consistency (the #1 anti-detection concern)

Instagram triggers login checkpoints when the browser fingerprint at scrape-time differs from the fingerprint at login-time. To prevent this, the system snapshots the fingerprint (OS, region, proxy country, viewport, verified/stealth flags) into Redis (identity:context:{id}) during ig:login, and later compares the current environment against it. The UI's session-identity badge surfaces this as OK / mismatch — re-run ig:login / not yet recorded.

One-time login provisioning (pnpm ig:login)

Creates a context + session, opens the live-view URL for a human to log in by hand (solving 2FA/checkpoints), records the fingerprint, then releases the session so cookies persist into the context. Outputs the BROWSERBASE_CONTEXT_IDS to paste into .env. Run pnpm ig:login 3 to provision three burner accounts.

Key environment variables

Variable	Purpose
BROWSERBASE_API_KEY, BROWSERBASE_PROJECT_ID	Auth + project
BROWSERBASE_CONTEXT_IDS	CSV of logged-in contexts, round-robined across agents
IG_REGION (default us-west-2)	Session region (must match Stagehand endpoint)
IG_PROXY_COUNTRY (default US)	Proxy geolocation
BB_VERIFIED, BB_ADVANCED_STEALTH, BB_BROWSER_OS	Enterprise anti-bot / OS pinning

---

5. Redis — The Backbone

A single Redis instance does everything: vector search, state, locks, and events.

Vector search (the heart of detection)

Two RediSearch indexes:

• idx:corpus (prefix corpus:) — the searchable language corpus. A VECTOR field (FLAT, FLOAT32, 768-dim, COSINE). KNN queries (*=>[KNN k @vector $BLOB AS score]) return cosine distance; similarity is 1 - distance.
• idx:posts (prefix post:) — scraped posts, with NUMERIC (risk score, timestamps), TAG (flagged, approval status, platform), and TEXT fields for feed filtering and sorting.

Corpus entries come in three flavors, all sharing one index:

Key pattern	Source	TTL
corpus:seed:{slug}	Hand-curated seed terms	permanent
corpus:approved:{postId}	Human-approved captions	14d, refreshed on every match
corpus:field:{slug}-{opId}	Slang learned from operations (R1)	14d, refreshed on match

Critical detail: vectors are stored as raw little-endian FLOAT32 buffers and are write-only — never read back via hGetAll (that would corrupt the binary). KNN returns only the scalar fields.

Other Redis usage

Key / structure	Type	Purpose
post:{id}	hash	Full post record + risk JSON
run:{id}, run:{id}:agent:{idx}	hash	Fleet run + per-agent state (1h TTL)
op:{id} + op:{id}:messages	hash + list	Operation state + append-only transcript (6h TTL)
op:by-post:{postId}	string	Dedup guard (one live op per post)
stream:field-intel	stream	Live "learning" ticker (trimmed ~200 events)
lock:decision:{postId}	string	5s TTL lock guarding approval races

Append-only transcripts use RPUSH + LRANGE to guarantee message ordering under concurrent reads.

---

6. Embeddings

What it is: Every piece of text (corpus terms and post captions) is turned into a 768-dimensional vector so similarity can be measured semantically rather than by keyword.

Key files: src/lib/embeddings.ts, src/lib/model.ts, infra/embedding-proxy/

• Model: nomic-embed-text-v2-moe @ 768 dims (self-hosted via llama.cpp).
• Task prefixes (required by Nomic): corpus entries are embedded with search_document:; post captions being scored use search_query:.
• Provider fallback chain: live (must succeed) → auto (try providers, fall back to a deterministic mock) → mock (offline-safe, for full-pipeline tests). Configured via EMBEDDING_MODE, EMBEDDING_API_URL, and a hosted NOMIC_API_URL fallback.
• Batching: 64 texts per request, input order preserved.
• Model version (nomic-embed-text-v2-moe@768) is persisted into each risk score so cached scores can be invalidated if the model changes.

The embedding proxy (infra/embedding-proxy/)

A tiny Node service (port 8090) that strips null-valued fields (e.g. "encoding_format": null) out of OpenAI-compatible embedding requests. The Redis Agent Memory Server sends those nulls via LiteLLM, but llama.cpp rejects them. The proxy lets the memory server reuse the same local embedder — one embedding family, one box, one shared 768-dim vector space across detection and memory.

---

7. How the LLMs Are Used

All language generation is Anthropic Claude. There are four distinct uses:

Use	Where	Model (default)	Load-bearing?	Job
Operative brain	operative-brain.ts	claude-sonnet-4-6	Yes	Negotiate, one forced-tool call per DM turn
Field-intel extractor (R1)	field-intel.ts	claude-sonnet-4-6	No (fails open)	Extract coded slang from seller messages
Outreach drafting	outreach.ts	claude-haiku-4-5	No (template fallback)	Draft a referral email to platform Trust & Safety
Agent memory server (R2)	docker sidecar	sonnet-4-6 / haiku-4-5	No (fails open)	Index + retrieve memories (via LiteLLM)

"Fails open" means: if the call errors or the key is missing, that feature degrades gracefully (returns [], a template, or skips) without breaking the run. Only the operative brain is allowed to fail fast.

Stagehand also uses an LLM (SCRAPE_MODEL, default claude-sonnet-4-6) internally to interpret observe/act browser instructions.

---

8. The Learning Loops

This is what makes the system self-improving. Both loops fire the moment an operation is confirmed (deal + location both true).

R1 — Field Intelligence (operative → detector)

File: src/lib/field-intel.ts

1. A forced Claude tool extracts coded slang only from the seller's own messages.
2. Provenance gate: each term's evidence quote must be a real substring of an actual seller message — the model can't invent words the seller never said. Confidence must be ≥ 0.7.
3. Dedup gate: terms already in the corpus (cosine distance < 0.05) are skipped.
4. Survivors are embedded and written as corpus:field:* entries.
5. Up to 200 pending posts are re-scored against the now-larger corpus, and the count of newly flagged posts is recorded.
6. A FieldIntelEvent is appended to stream:field-intel, which drives the live ticker: "@handle taught the detector 'zaza', 'tap in' → 4 posts re-flagged."

R2 — Cross-Operation Memory (operation → next operative)

File: src/lib/agent-memory.ts (backed by the redislabs/agent-memory-server sidecar — note its worker must be running, or memories never index)

• Recall (turn 0): before composing the opener, the operative queries the memory server with a semantic question ("what opener/tone/tactics have worked against this seller / this drug / these code words?"). Up to 3 hints are injected into the brain's system prompt as PRIOR INTEL. Fail-open: 4s timeout, returns [] if the server is down.
• Pin (on confirm): the operation is saved as an episodic memory — the working opener, tone, meeting location, and turn count — tagged with the drug and seller handle/code words for future semantic recall.

Net effect: each confirmed bust both widens detection (more slang in the corpus → more posts flagged on the next scrape) and sharpens engagement (the next operative starts already knowing what worked).

---

9. End-to-End Flow (one full cycle)

1. Scrape — operator launches a fleet of N agents; each drives a Browserbase session over a hashtag and ingests posts via /api/ingest.
2. Score — each post is embedded (search_query: prefix) and KNN-matched against idx:corpus. Final risk = 65% semantic similarity + 35% heuristics (keywords, emojis, handoff apps, payment cues). flagged if score ≥ 70.
3. Triage — flagged posts surface in the feed; a human can approve novel captions into the corpus, immediately improving detection.
4. Engage — operator launches an operative against a flagged (allowlisted) seller. The LLM negotiates over DMs toward deal + location, state visible live.
5. Confirm — when both objectives are met, R1 grows the corpus and re-scores pending posts; R2 pins the winning tactics to memory.
6. Compound — the next scrape flags more posts (bigger corpus), and the next operative is primed with memory. The loop tightens with every cycle.

---

10. Quick Reference — Key Environment Variables

# Redis
REDIS_URL=redis://localhost:6379

# Embeddings
EMBEDDING_MODE=auto                 # auto | mock | live
EMBEDDING_API_URL=http://localhost:8080/v1/embeddings
NOMIC_API_URL=                      # hosted fallback
EMBEDDING_DIM=768

# Scoring
RISK_THRESHOLD=70

# Browserbase
BROWSERBASE_API_KEY=...
BROWSERBASE_PROJECT_ID=...
BROWSERBASE_CONTEXT_IDS=ctx1,ctx2   # from `pnpm ig:login`
IG_REGION=us-west-2
IG_PROXY_COUNTRY=US

# Fleet
IG_AGENT_TIMEOUT_MS=120000
IG_MAX_POSTS_PER_AGENT=8

# Operative
ANTHROPIC_API_KEY=...               # required for operative brain
OPERATIVE_MODEL=claude-sonnet-4-6
OPERATIVE_BUDGET_MS=1500000         # 25 min
OPERATIVE_MAX_TURNS=12
OPERATIVE_ALLOWLIST_ENFORCED=true   # never disable in a live demo

# Learning loops
FIELD_INTEL_DEDUP_DISTANCE=0.05
FIELD_INTEL_RESCORE_LIMIT=200
AGENT_MEMORY_URL=http://localhost:8000
AGENT_MEMORY_RECALL_LIMIT=3
OUTREACH_MODEL=claude-haiku-4-5-20251001
