HiveSense - Non-Invasive Beehive Monitoring

A multimodal (acoustic + vision) pipeline for assessing beehive health without opening the hive, exposed as a live Fetch.ai uAgent fleet with an ASI:One chat interface and a real-time dashboard.

The guiding principle of this project is honest evaluation: every model is validated hive-held-out (no colony appears in both train and test), and we report what the data can and cannot support rather than inflated within-hive numbers.

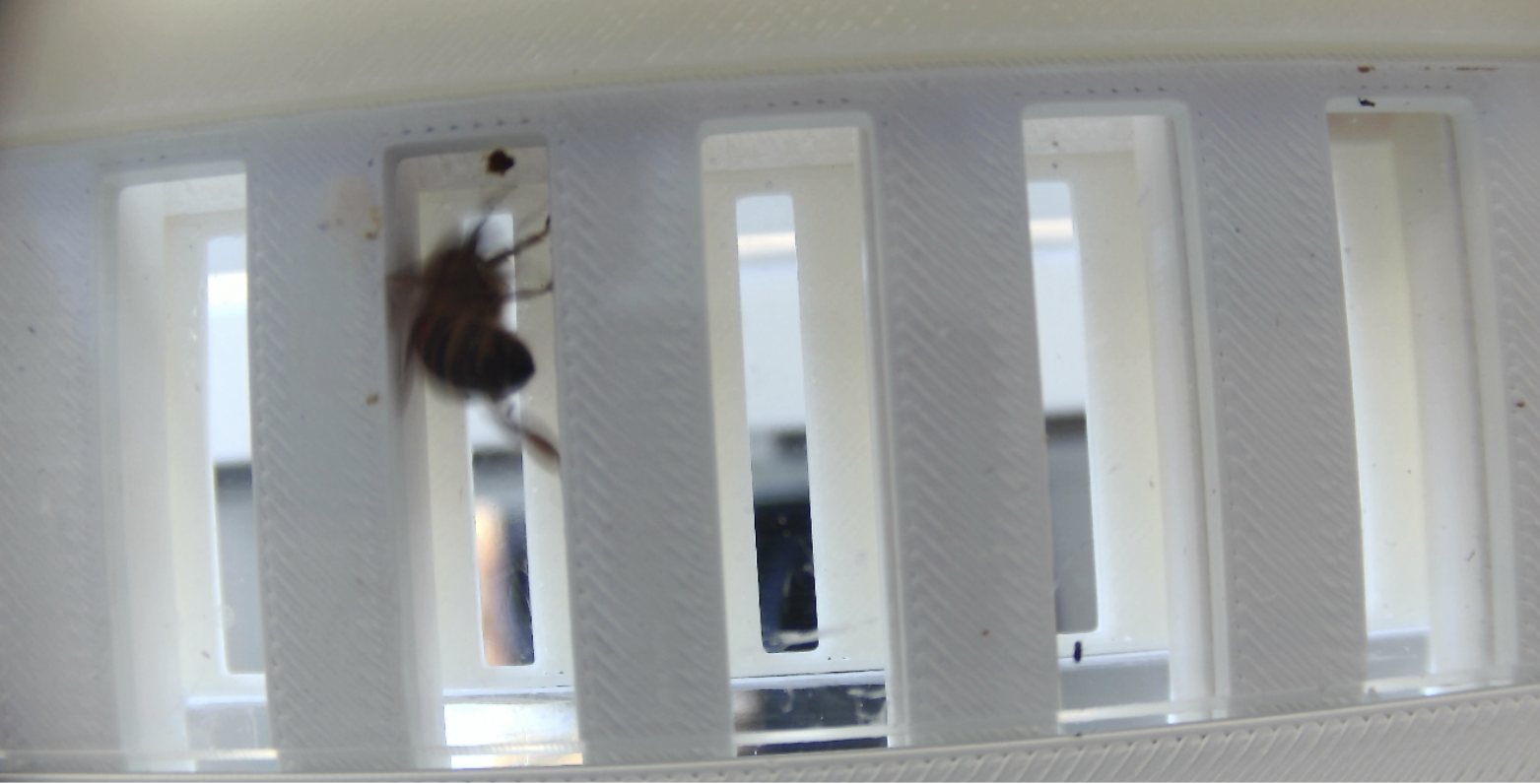

The entrance tunnel (hardware prototype)

HiveSense is non-invasive: instead of opening the hive, bees are filmed and recorded as they walk through a clear entrance tunnel, which is where the vision model reads Varroa load and the entrance mic captures traffic and sound. Below are the 3D-printed tunnel prototype and a field test with bees actually passing through it.

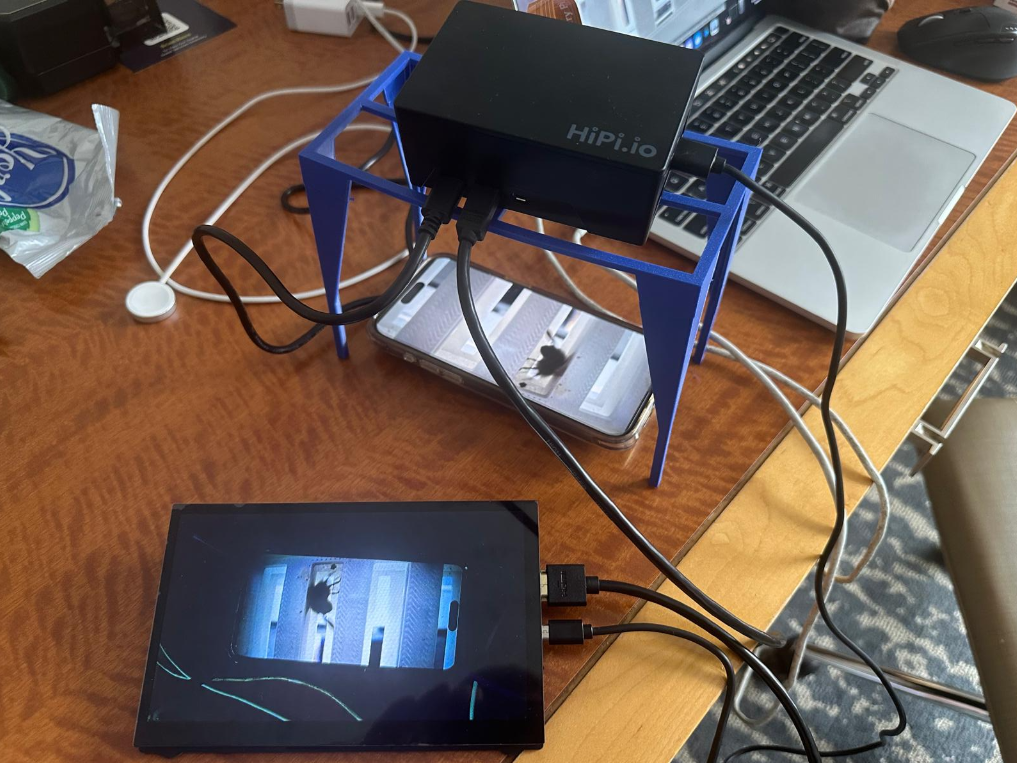

Tunnel prototype	Field testing

What actually works (honest results)

All acoustic models are RandomForests on handcrafted features (13 MFCC + 9 spectral-shape descriptors, or 20 MSPB audio channels). Metrics are balanced accuracy, the only honest split in brackets.

Signal	Modality	Dataset	Model	Honest performance	Status
Colony strength (population)	Acoustic	MSPB	RandomForest	0.646 hive-held-out (baseline 0.658)	shipped (models/rf_population.pkl)
Input gate (bee / noBee)	Acoustic	To-bee	RandomForest	0.58 hive-held-out / 0.69 within-hive	weak cross-hive (only 6 colonies)
Queenless	Acoustic	To-bee	RandomForest	0.18 hive-held-out / 0.88 within-hive	confounded with colony identity
Varroa mites	Vision	VD2	ViViT-B (Vit4V, pretrained)	0.986 acc / 0.988 F1 (paper); locally verified	usable (models/Vit4V_model.pth)
Swarm	Acoustic	-	Ferrari frequency rule	deterministic	rule, no training

Key findings (see the notebooks for the evidence):

• Population is the one solid acoustic model - it matches the published MSPB SVM baseline.
• Queenless looks great within-hive (0.88) but collapses cross-hive (0.18) - a textbook case of the model learning which colony rather than queen state, because each To-bee colony is recorded in only one state. Demonstrating it properly needs many colonies recorded before/after dequeening.

Validation methodology (why hive-held-out, not a single train/test split)

Every acoustic model is evaluated with hive-held-out cross-validation (GroupShuffleSplit / GroupKFold grouped on hive id): no colony ever appears in both the training and test folds, so the score measures generalisation to colonies the model has never heard, which is the only thing a deployed fleet actually faces.

We deliberately do not use one fixed train/test split, for two reasons:

1. Sample size. With 53 hives (MSPB) or just 6 (To-bee), a single split is luck-driven; repeated grouped CV gives a mean and a standard deviation, which is a far more honest estimate than one number from one arbitrary partition.
2. Leakage detection. Reporting both within-hive and hive-held-out scores exposes identity leakage. The queenless model is the clearest example: it scores ~0.88 within-hive but ~0.18 hive-held-out, which proves it was memorising which colony rather than learning queen state (each To-bee colony is recorded in only one state). A single random split would have hidden this and produced a misleadingly good number.

The shipped .pkl models are then refit on all labelled data (standard practice: validate with CV, deploy the model trained on everything); the stored metric is always the hive-held-out score, never the optimistic within-hive one.

System architecture

A strict gate runs before any acoustic health check, and acoustic capabilities are kept separate from vision capabilities (they detect different things at different scales).

flowchart TD
    AudioInput[Raw Audio Input] --> Gate{Input Gate<br>Bee vs noBee}
    Gate -- "noBee (noise)" --> Discard[Discard / Halt]
    Gate -- "Bee (valid)" --> Feats[MFCC + Spectral-Shape Features]

    Feats --> QueenModel[Queenless Classifier<br>acoustic, RF]
    Feats --> PopModel[Colony-Strength Classifier<br>acoustic, RF]
    Feats --> Swarm[Swarm: Ferrari frequency rule]

    ImageInput[Raw Image Input] --> VisionModel[Vision Model vit4v]
    VisionModel --> VisualMite[Visual Varroa Detection]

    VisualMite -.-> Verdict((Fused<br>Hive Verdict))
    QueenModel -.-> Verdict
    PopModel -.-> Verdict
    Swarm -.-> Verdict

Agentic layer (Fetch.ai uAgents)

The models are wrapped into a multi-agent system: a Host-Worker pattern per hive, scaling up to a fleet-level coordinator that speaks the official ASI:One chat protocol.

flowchart TD
    Feed["Apiary feed (simulated, 24h+ continuous)"]
    subgraph Hives ["7 hive reasoning agents (hive_agent.py)"]
        H["each hive: acoustic (always-on) -> decide vision -> reconcile -> Verdict"]
    end
    Feed --> Hives
    Hives -- "Verdict per hive" --> GF{"Godfather: coordinator.py + godfather.py"}
    GF -- "cross-hive: regional varroa, robbing, priorities" --> Store[("data/verdicts.json (shared store)")]
    Store --> API["api_server.py: /api/status + /api/apiary"]
    API --> Dash["Dashboard (frontend)"]
    Store --> Chat["asi1_agent.py: ASI:One chat protocol"]
    User((Beekeeper)) -- "how are my bees?" --> Chat
    Chat -- "answer + godfather summary" --> User
    Store --> HD["HiveDoctor: VoI gate (Orkes Agentspan)"]
    HD -- "auto-act / auto-hold (confident)" --> Store
    HD -- "close call: durable approval pause" --> User
    User -- "approve / decline" --> HD

Sensing (uAgents) writes verdicts; the action layer (Agentspan) reads them and decides whether to act alone or pause for the beekeeper. The VoI decision flow is below in the Agentspan section.

Agent roles

1. Hive reasoning agents (7, one per hive) - hive_agent.py + reasoning.py + tools.py. Each runs the cheap acoustic detector every cycle, then decides (ASI:One asi1, with a deterministic fallback) whether the reading is ambiguous enough to spend the expensive tunnel-vision test. It reconciles the two: acoustic and vision agree -> confident verdict; they clash -> it does not guess, it sets needs_human and asks a beekeeper. Models are called as tools; it emits a Verdict.
2. The Godfather (fleet coordinator) - coordinator.py + godfather.py. Looks across all 7 hives for what no single hive can see: regional Varroa pressure, neighbour robbing (influx at one hive vs outflux next door, by position), and a prioritised beekeeper action list. It writes the shared verdict store and serves GET /api/status.
3. ASI:One chat agent - asi1_agent.py. Publishes the official chat protocol (uagents_core.contrib.protocols.chat) so the apiary is queryable from ASI:One ("how are my bees?"), answering from the live verdicts plus the Godfather's summary. Its LLM brain is switchable (ASI:One / Gemini / Claude) and degrades to a deterministic, data-only answer if no key is set.

The point of this layer is that the beekeeper never has to read sensor data: they get a plain-language morning report and can ask about any hive in their own words, like texting a knowledgeable friend.

Why each hive agent has its own memory (isolation by design)

The 7 hive agents are deliberately mutually blind. Each one talks only to the Godfather, keeps only its own private memory (ctx.storage, plus its own hive-scoped slice of the optional Redis store), and never sees another hive's data. All cross-hive intelligence lives in the one place that is meant to have it: the Godfather. This is a fan-in topology (7 -> 1), not a shared blackboard that every agent reads and writes.

A1 .. C1  --(its own Verdict only)-->  GODFATHER  -->  shared store / dashboard / chat
   (no hive holds another hive's address; no hive reads the global store)

We chose isolated per-agent memory over one shared memory for five reasons:

1. Independent evidence. The Godfather's headline patterns ("two hives in alert = a regional outbreak", "robbing between neighbours") are only trustworthy if each hive's verdict is an independent observation. If the hives shared memory, hive B could see hive A's alert and drift toward agreeing - an echo chamber that manufactures correlation instead of measuring it.
2. Fault and fraud isolation. A glitching sensor, a corrupted reading, or a compromised node can damage only its own state. With one shared store, a single bad write is instantly visible to - and can mislead - every other agent.
3. Least privilege (security). This is a surveillance system, so it follows the security default: each agent gets only the data it needs (its own). A shared memory is one fat attack surface; isolated memory means breaching one hive does not hand over the whole apiary.
4. It mirrors the real deployment. In the field each hive is a separate edge device with its own mic, camera and compute - they genuinely do not share RAM. The architecture maps 1:1 onto that, so moving from one laptop to N field devices changes nothing. A shared in-memory object would not survive that move.
5. Provenance and audit. Every verdict has exactly one author. With shared mutable memory you lose "who observed what", which is precisely the accountability a monitoring system needs.

The trade-off is intentional: individual hives stay simple and blind, and all the "see the whole yard" reasoning is concentrated in the Godfather (coordinator.py correlate() + godfather.py). That is the classic defense-in-depth shape - isolated edges, central oversight. The boundary is marked in code (hive_agent.py, run_fleet.py) so it does not regress.

Durable action layer (Orkes Agentspan): HiveDoctor, the agent that knows when not to ask

Fetch.ai uAgents handle decentralised sensing. Orkes Agentspan handles the durable, audited action that follows. The hard, under-appreciated skill in any monitoring system is not answering everything; it is knowing when to stay quiet. The scarce resource was never the agent's compute. It is the beekeeper's attention. Monitoring systems (ICU alarms, security panels, beekeeping apps) rarely fail by missing things. They fail by crying wolf until people mute them. HiveDoctor is built to be the cure for that alarm fatigue.

The Value-of-Information gate (src/agentspan/voi.py). For each hive and condition the agent fuses its sensors into a belief p = P(real problem), then runs a small, closed-form decision-theory calculation that weighs the expected value of the beekeeper's input (EVPI) against the cost of interrupting them. Three outcomes follow:

Decision	When	What happens
auto-hold	confident all is calm (EVPI below cost to ask)	watches quietly, never bothers you
auto-act	confident there is a problem (EVPI below cost to ask)	treats on its own, no interruption
ask you	a genuine close call (EVPI above cost to ask)	pauses on Agentspan's durable approval gate

flowchart TD
    V["Hive verdict: acoustic + vision"] --> P["Fuse to belief p = P(problem)"]
    P --> G{"VoI gate: EVPI vs cost to ask"}
    G -- "confident calm" --> Hold["auto-hold: keep watching, no interruption"]
    G -- "confident problem" --> Act["auto-act: treat on its own"]
    G -- "close call (EVPI > cost to ask)" --> Ask["Agentspan: durable approval pause"]
    Ask --> Bee((Beekeeper))
    Bee -- "approve / decline" --> Ask
    Ask -- "survives a crash, resumes by workflow_id" --> Done["treatment applied or declined"]

EVPI is large only when the call is both uncertain and high-stakes, and collapses to near zero when the agent is confident either way. That is why the gate stays quiet at both ends and speaks up only in the uncertain middle. It is pure math (never an LLM call), so it always runs and you can show the numbers live: python src/agentspan/voi.py prints the worked examples from the paper.

Grounding (the unique, research-backed part). This is based on "Value of Information: A Framework for Human-Agent Communication" (arXiv 2601.06407, Jan 2026), which uses Value of Information to weigh an agent's expected utility gain from asking against the cognitive cost on the user. The lineage runs from Howard's Value of Information (1966), through Horvitz on the cost of interrupting a user, to KnowNo (Princeton and Google DeepMind, ask when uncertain), and on to the Jan 2026 framework. Our contribution is the transplant plus the guarantee: the first VoI-gated human-in-the-loop on a non-invasive physical colony-monitoring mesh, coupled to Agentspan so that the question itself survives a crash. The same decision math oil companies use to decide whether a seismic survey is worth paying for now decides whether waking the beekeeper is worth it. HiveSense is non-invasive twice: we do not disturb the colony to sense it, and we do not disturb the beekeeper unless the math says they are needed.

Why Agentspan. When the gate decides to ask, the treatment action is an @tool(approval_required=True). Agentspan pauses the run server-side and holds it indefinitely and crash-safe, resuming by workflow_id. The pause is the payoff of the VoI calculation, so the platform's flagship feature (durable human-in-the-loop) is justified by a real algorithm rather than decoration. It degrades gracefully: with the server up, runs execute on the durable engine; without it, the same gate and approval flow run through a durable on-disk registry (runs.py) so a demo never breaks.

pip install agentspan
export GEMINI_API_KEY=...                # LLM reasoning uses Gemini (google_gemini/gemini-2.5-flash)
agentspan server start                   # serves http://localhost:6767 (durable engine + console)

python seed_voi_demo.py                  # give hives a spread of severities for a clear demo
python demo_hive_doctor.py               # sweep: see which hives it watches, treats, or asks about
python demo_hive_doctor.py A3            # one hive plus the durable human-in-the-loop gate
AGENTSPAN_LIVE=1 python demo_hive_doctor.py A3   # run on the live Agentspan engine

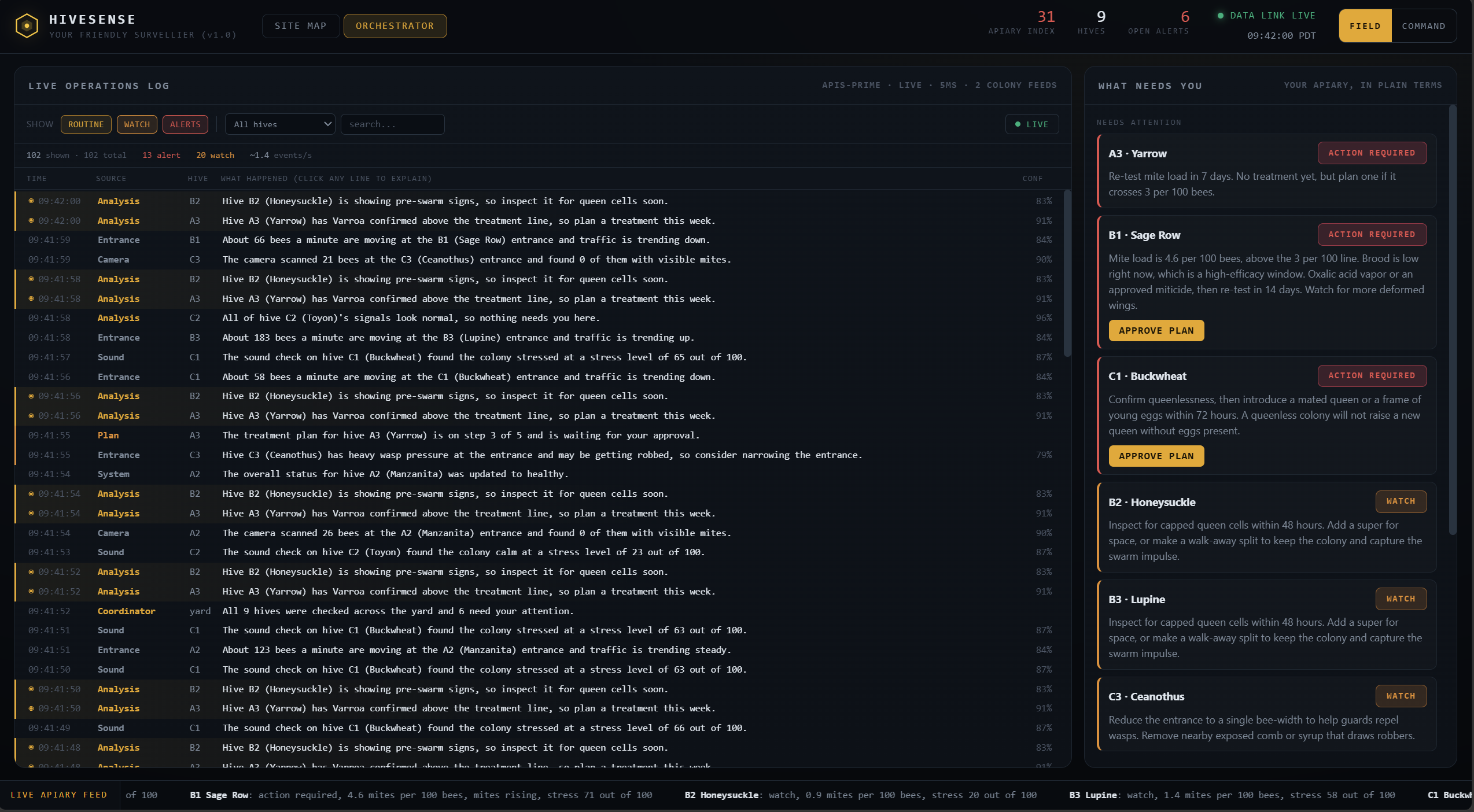

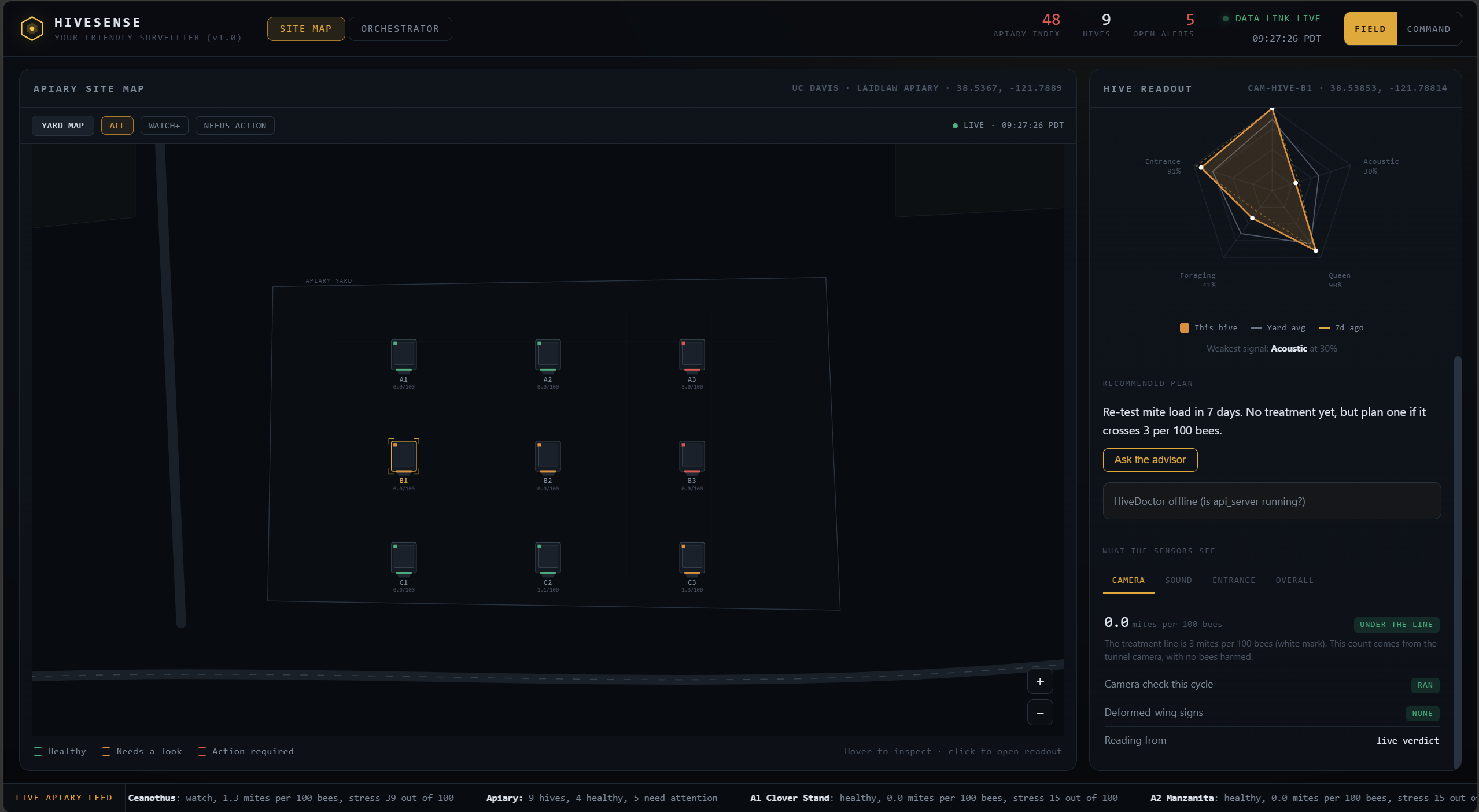

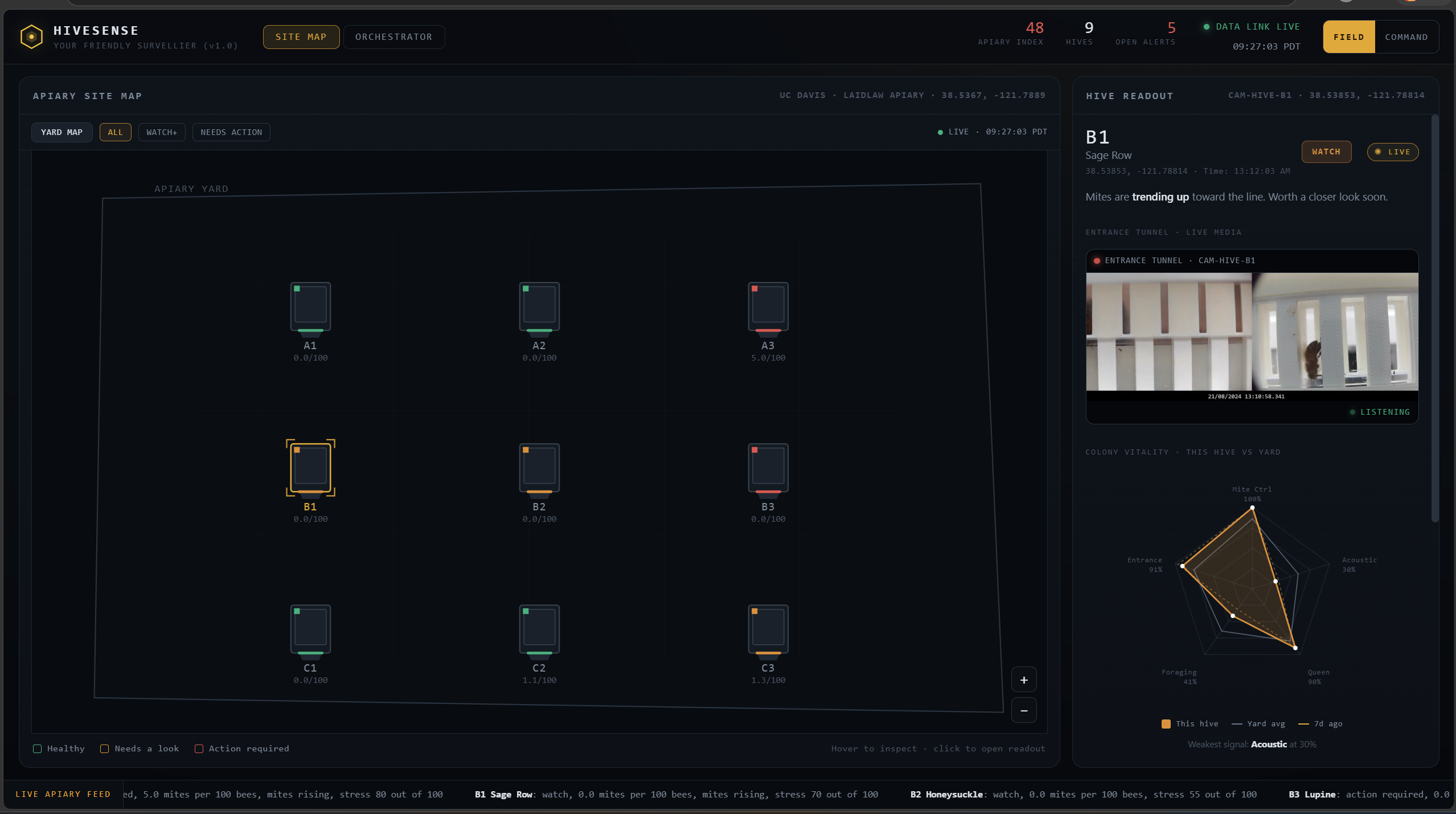

In the dashboard, open any hive. The HiveDoctor (Orkes Agentspan) panel shows the decision in plain language, a "why" toggle with the live VoI maths (p, EVPI versus cost-to-ask), and, only on a close call, an Approve / Decline gate wired to POST /api/treatment/respond. The durability demo: kill the worker at the approval pause, restart it, and Agentspan resumes from exactly where it stopped (load-bearing on the live engine).

Datasets

UrBAN was dropped from the project: it is a phenotyping dataset (queen status, colony size, brood) with no Varroa labels, and its acoustic feature space is unrelated to the Abdollahi varroa work.

Dataset	Used for	Notes
MSPB (Zenodo 11398835)	Population + (attempted) Varroa	Pre-extracted 20 audio features + phenotype labels. Sensor hive id tag_number joins to phenotype Hive ID by stripping the leading 20.
To-bee (NU-Hive / OSBH)	Gate + Queenless	Raw audio + .lab bee/noBee intervals; queen state in filenames (mind the NO_QueenBee substring trap).
vit4v / BUT	Vision Varroa	Pretrained vision model + co-registered image/audio for the demo.

Audio provenance (which mic, and why it matters)

The acoustic models are trained on inside-the-hive colony sound (MSPB BeeHub devices and To-bee in-hive recordings) - whole-colony acoustics, the right scale for queenless / population / stress signals. The BUT-2 / boortel device is an entrance-tunnel device: its camera films bees walking through 8 mm tunnels and its mic captures entrance-area sound. These are different acoustic domains, so BUT-2 audio is not used for the in-hive acoustic models (domain mismatch, and BUT-2 ships no health labels). BUT-2 is used for vision only.

Vision model - Vit4V (Varroa from tunnel video)

models/Vit4V_model.pth is a fine-tuned ViViT-B video transformer (google/vivit-b-16x2-kinetics400): input = a 32-frame, 224x224 RGB clip of a bee passing the tunnel, output = a single sigmoid logit = P(Varroa). Loader: src/vit4v_infer.py.

• It is usable. The checkpoint loads cleanly (0 missing / 0 unexpected keys, 88.6M params) and runs. It requires transformers==4.44.2 - v5.x renamed the ViViT layers and would silently load the encoder with random weights, so the loader raises if the keys don't match exactly.
• Run the smoke test: python src/vit4v_infer.py (rebuilds the architecture, loads the weights, runs a synthetic clip end-to-end).
• Run a real clip / live demo: src/run_demo.py classifies a bee as INFESTED vs CLEAR from a VD2 clip: python src/run_demo.py --video dataset/vd2/varroa_infested/<clip>.mkv (--frames dir/ for the pre-cropped frame dataset; --annotate out.mp4 to burn the verdict in). Critical: the model is run on a bee crop, not the raw frame - run_demo reuses the official VideoSegmenter (background-subtraction + largest-contour 224px box) from the cloned github/vit4v repo, then classifies contiguous 32-frame windows. Feeding the whole UHD frame makes the bee a few pixels and the model wrongly says CLEAR. Verified: infested clip -> INFESTED (p0.75), healthy clip -> CLEAR (p0.00). Download a few VD2 clips without the 200 GB archive: kaggle datasets download -d <owner/slug> -f "varroa_infested/<file>.mkv" --unzip (read <owner/slug> off the opened DOI page; grab ~2 infested + 1 healthy for the demo).
• Labelled test set = VD2 (the model's own benchmark). Vit4V was trained/tested on the Varroa Destructor Video dataset (VD2): 607 RGB videos / ~37,890 frames, balanced varroa_infested vs varroa_free, segmentable into the 32-frame clips the model expects. This is the correct dataset to quantitatively test the checkpoint and the reference format for our own phone-over-tunnel captures. Kaggle (title "EV2 Video Dataset"): video https://doi.org/10.34740/kaggle/dsv/11159683, frames https://doi.org/10.34740/kaggle/dsv/11254629.
• BUT-2 is vision-modality-correct but unusable for accuracy: it has no per-bee Varroa labels (the BUT group's Varroa ground truth is in the separate hyperspectral BUT-HS/HS2 sets), so it is at best a qualitative demo, not a scored test.
• Image-only fallbacks (for a per-frame detector instead of the video model): VarroaDataset (Zenodo 10.5281/zenodo.4085044, healthy vs infested bee crops) and Roboflow varroa sets.

Citations & benchmarks

Datasets & models

• Zhu, Y., Abdollahi, M., Maucourt, S., Coallier, N., Guimarães, H. R., Giovenazzo, P., & Falk, T. H. (2024). MSPB: a longitudinal multi-sensor dataset with phenotypic trait measurements from honey bees. Scientific Data 11, 860. (Data: Zenodo doi:10.5281/zenodo.8371700; preprint arXiv:2311.10876)
• Nolasco, I., & Benetos, E. (2018). To bee or not to bee: investigating machine learning approaches for beehive sound recognition. DCASE 2018 Workshop. arXiv:1811.06016
• Giovannesi, L., et al. (2025). Vit4V: a Video Classification Method for the Detection of Varroa Destructor. CVPR 2025 Workshops. (code: github.com/kernel-machine/vit4v)
• Arnab, A., Dehghani, M., Heigold, G., Sun, C., Lučić, M., & Schmid, C. (2021). ViViT: A Video Vision Transformer. ICCV 2021. arXiv:2103.15691
• Abdollahi, M., et al. On the Prediction of Varroa Mite Infestations in Honey Bee Colonies via Acoustic Monitoring. IEEE Sensors Journal (2026). (ROC-AUC 0.874)
• Ferrari, S., Silva, M., Guarino, M., & Berckmans, D. (2008). Monitoring of swarming sounds in bee hives for early detection of the swarming period. Computers and Electronics in Agriculture, 64(1), 72-77.
• Abdollahi, M., Zhu, Y., Guimarães, H. R., Coallier, N., Maucourt, S., Giovenazzo, P., & Falk, T. H. (2025). UrBAN: Urban Beehive Acoustics and PheNotyping Dataset. Scientific Data 12, 536. doi:10.1038/s41597-025-04869-1 (arXiv:2406.03657)

Agent & decision-theory references

• Value of Information: A Framework for Human-Agent Communication. arXiv:2601.06407
• Howard, R. A. (1966). Information Value Theory. IEEE Transactions on Systems Science and Cybernetics, 2(1), 22-26.
• Horvitz, E. (1999). Principles of Mixed-Initiative User Interfaces. CHI 1999.
• Ren, A. Z., et al. (2023). Robots That Ask For Help: Uncertainty Alignment for Large Language Model Planners (KnowNo). CoRL 2023. arXiv:2307.01928

Benchmark summary

Task	Dataset	Model	Published baseline	Ours (hive-held-out unless noted)
Colony strength	MSPB	RandomForest	SVM 0.658 balanced acc (MSPB paper)	0.646 +/- 0.065
Input gate (bee/noBee)	To-bee	RandomForest	-	0.578 cross-hive / 0.689 within-hive
Queenless	To-bee	RandomForest	-	0.184 cross-hive / 0.883 within-hive (confounded)
Varroa (acoustic)	MSPB	-	Abdollahi 0.874 AUC (different data)	untrainable (0 hives reach 3%)
Varroa (vision)	VD2	ViViT-B (Vit4V)	0.986 acc / 0.988 F1 (Vit4V paper)	verified on VD2: infested p0.75, healthy p0.00

All metrics are balanced accuracy unless stated. "Cross-hive" = GroupShuffleSplit on hive id; "within-hive" = random StratifiedKFold (shown only to expose leakage). The vision row is the paper's held-out number plus our local sanity check on downloaded VD2 clips (not a full re-run of the benchmark).

Configuration (.env)

All configuration is via environment variables, read from a .env file at the repo root (loaded automatically by api_server.py). Copy .env.example to .env and fill in what you need. Everything is optional: with no keys set, the system runs in deterministic fallback mode (no LLM, no Redis, no Agentverse), so the demo always works. The real .env is gitignored, so never commit your keys.

cp .env.example .env     # then edit .env

Variable	Used by	Default / notes
GEMINI_API_KEY	HiveDoctor explanations, explain/advise, chat	the project's default LLM (Google AI Studio key)
GEMINI_MODEL	Gemini calls	gemini-2.5-flash
GOOGLE_CLOUD_PROJECT	Agentspan server's Gemini provider	only needed for the live engine
ASI_ONE_API_KEY	uAgent reasoning + ASI:One chat	falls back to deterministic policy if unset
ANTHROPIC_API_KEY / ANTHROPIC_MODEL	optional Claude fallback	claude-3-5-sonnet-latest
LLM_PROVIDER	explicit provider selector	optional (asi1 / gemini / anthropic)
AGENTSPAN_LIVE	HiveDoctor durable engine	0; set 1 to run on the live Agentspan server
AGENTSPAN_MODEL	Agentspan agent model string	google_gemini/gemini-2.5-flash
USE_REDIS	multimodal memory backend	0; set 1 for Redis Stack, else file store
REDIS_URL / REDIS_TIMEOUT	Redis connection	redis://localhost:6379, falls back on timeout
AGENTVERSE_API_KEY	Fetch.ai mailbox / Agentverse registration	needed for the hosted fleet
MAILBOX	uAgent connectivity	1 mailbox, 0 local-only
AGENT_SEED / AGENT_ENDPOINT / AGENT_CONNECT_URL / AGENT_TYPE	uAgent identity + connectivity	self-hosted / advanced
PORT	api_server.py	8000
FEED_INTERVAL / HIVE_PERIOD	simulated feed + hive cycle timing	seconds
ROBOFLOW_API_KEY / KAGGLE_API_TOKEN	dataset downloads only	not needed to run the demo

For the durable Agentspan engine specifically: set GEMINI_API_KEY (and GOOGLE_CLOUD_PROJECT), then AGENTSPAN_LIVE=1, and run agentspan server start (needs Java 21). Without it, the VoI gate and approval flow still run through the on-disk registry.

Reproducing the results

pip install -r requirements.txt

# Train + save the three trainable models (writes to models/*.pkl):
python src/train_population.py        # MSPB colony strength
python src/train_gate_queenless.py    # To-bee gate + queenless (caches features first)
python src/train_varroa_acoustic.py   # MSPB varroa -> flags single-class, saves nothing

# --- Live demo (no uAgents / no mailbox needed - the reliable path) ---
python seed_apiary.py                 # lay down 24h of data for all 7 hives (run once)
python api_server.py                  # serve /api/status + /api/apiary on :8000
python live_feed.py                   # (optional, own terminal) keep extending the timeline live
python asi1_agent.py                  # ASI:One chat agent (answers from the live data)

# --- Full uAgent fleet (optional - needs the system clock in sync for the mailbox) ---
python -m src.agents.run_coordinator  # the Godfather; prints an Agentverse Inspector link
python -m src.agents.run_fleet        # the 7 hive reasoning agents

# Dashboard (Vite proxies /api -> :8000; run ONE thing on :8000):
cd frontend && npm install && npm run dev

Redis Stack - the apiary's multimodal memory (optional, USE_REDIS=1)

By default the fleet shares state through a single JSON file (data/verdicts.json). That file is rewritten in full on every append and read back in full on every request - fine for a demo, but it cannot do similarity search and the write cost grows with history. Setting USE_REDIS=1 swaps in a Redis Stack backend that uses four of its modules, each for a concrete need. Nothing else changes: every component goes through hive_state.py, which delegates to the selected backend (src/store/). If USE_REDIS=1 but Redis is unreachable (or is a plain Redis without the Stack modules), it logs a warning and falls back to the file store - the demo never breaks.

Capability	Module	Keys	What it gives us
Live verdict state	RedisJSON	hs:hive:{id} (latest), hs:hive:{id}:hist (history)	JSON.ARRAPPEND + ARRTRIM append one doc instead of rewriting the whole file
Per-hive metrics	RedisTimeSeries	hs:ts:{id}:{acoustic_stress|traffic|mite_rate}	RETENTION 24h enforces the rolling window; TS.MRANGE reads every hive in one call
Similarity search	RediSearch (HNSW)	hs:reading:{id}:{ts} + index hs:idx	filtered vector k-NN ("find past states like this hive's now") - the file store cannot
Live push	Pub/Sub	channel hs:events	dashboard refreshes the instant a verdict lands (SSE), not on the 2s poll

One bound vector per reading (the "unimodal" idea, done right). Each reading is stored as a single fused 86-d vector = L2(acoustic_22) ⊕ L2(vision_64), L2-normalised - a lightweight early fusion. The acoustic half is the existing MFCC/spectral set; the vision half is the ViViT encoder's CLS token through a fixed seeded random projection (real ViViT, no new trained weights; a handcrafted fallback labelled vision_source when no clip is on hand). One vector → one HNSW index → one k-NN query powers retrieval-augmented reasoning: before the brain reconciles acoustic-vs-vision, it recalls the hive's most similar past states (reasoning.reconcile(..., similar=...)), e.g. a look-alike reading a beekeeper later confirmed was a false alarm.

This is the early-fusion / single-tower direction the literature validates (ImageBind, FuseLIP, MM-Embed). The real bound space is the optional src/imagebind_embed.py adapter: with pip install git+https://github.com/facebookresearch/ImageBind.git it maps a bee image and audio clip into one aligned space, unlocking cross-modal retrieval (query by sound, retrieve by sight) and embedding arithmetic. Honest caveat: ImageBind's audio encoder is general, not bee-specific, so the bee-domain alignment is approximate - but it is a true shared space, which a concat is not. (There is no steganographic packing - an earlier draft tried hiding audio bytes in a PNG; on live Redis it inflated memory and only saved round-trips, so it was dropped in favour of the single vector.)

Measured on live Redis Cloud (bench/redis_bench.py, 3000 readings): one fused vector = 1 index, 1 query, ~28 ms, 2.05 MB; late fusion (separate acoustic + vision vectors) = 2 indexes, 2 queries, ~40 ms, 3.09 MB → ~1.4× fewer query round-trips and ~34% less index memory, and it is the only layout with a shared space to search across.

Run it (any Redis Stack - local Docker, or a managed Redis Cloud URL; no API key, just REDIS_URL in .env):

# option A: local Docker         docker run -d -p 6379:6379 -p 8001:8001 redis/redis-stack:latest
# option B: Redis Cloud (no install)  -> set REDIS_URL=redis://default:<pw>@<host>:<port> in .env
USE_REDIS=1 python scripts/redis_smoke.py        # verify the live path (PASS/FAIL per capability)
USE_REDIS=1 python -m src.agents.run_fleet       # fleet writes JSON + TS + one fused vector/reading
USE_REDIS=1 python api_server.py                 # serves /api/similar + /api/events (SSE)
python bench/redis_bench.py --n 300              # one-index vs late-fusion + vector + state numbers
# notebooks/redis_unimodal_showcase.ipynb        # the full, honest, runnable showcase

Why one fused vector (the five points the showcase notebook proves with plots):

1. one fused vector still separates the hive states (cosine heatmap),
2. one vector → one HNSW index → one k-NN query; late fusion needs two indexes, two queries, a merge,
3. filtered similarity (@hive + k-NN) is a single Redis query a numpy scan/late-fusion can't match,
4. for live state the file-rewrite cost grows with history while one append stays flat,
5. the real upgrade is a bound space (ImageBind) for cross-modal search + embedding arithmetic.

Honest claims vs marketing. Defensible: one fused vector → one index → one query (fewer round-trips + less memory than late fusion, measured); built-in 24h retention; filtered vector k-NN enabling RAG. Do not overclaim: the live fusion is a concat (lightweight early fusion), not a trained joint encoder - true cross-modal retrieval/arithmetic need the bound ImageBind space; the ViViT half is an honest CLS projection (labelled vision_source); a remote Redis is network-bound, so it does not beat a local file on single-op latency (its value is capabilities + concurrency); and the apiary feed is still simulated.

Dashboard API

api_server.py exposes two read-only JSON endpoints on :8000; the Vite dev server already proxies /api to it. Run ONE thing on 8000 (this server, not the old mock).

• GET /api/status -> { "hives": { "<HIVE>": [verdict, ...] } }, up to 24h+ of history per hive. Each verdict carries: varroa_status (clear|watch|alert), queenless_alert, swarm_alert, traffic (signed net flow), position [x, y], needs_human, reason, timestamp, plus the per-detector signals acoustic_stress (0..1), vision_mite_rate, vision_ran.
• GET /api/apiary -> the Godfather's apiary-wide read, for a top-level panel: { headline, healthy, alerts[], watches[], needs_human[], queenless[], swarming[], emergent[], priorities[ {hive, action, why} ] }.
• GET /api/similar?hive=<HIVE>&k=5 -> Redis vector k-NN: readings most similar to that hive's current state, { hive, similar: [{key, hive, ts, varroa_status, needs_human, score}] }. Returns an empty list with a note when running on the file store (no USE_REDIS).
• GET /api/events -> Server-Sent Events stream bridged from the Redis hs:events channel (instant push). Returns 501 on the file store; the frontend keeps its 2s poll regardless.

Suggested additions: a Godfather panel bound to /api/apiary (headline + prioritised actions + emergent patterns like regional Varroa / robbing), and per-hive cards that show the acoustic-vs-vision reasoning (acoustic_stress vs vision_mite_rate) with an "inspect" badge when needs_human is true.

Directory structure

• dataset/ (git-ignored) - MSPB/, to_bee_or_no_to_bee/, vd2/ audio/video + labels.
• eda/ - analysis notebooks (mspb_eda.ipynb, tobee_gate_queen_eda.ipynb), each structured as Question, Plot, Reasoning. eda/cache/ (git-ignored) holds extracted To-bee features.
• src/
  • mspb_loader.py, tobee_loader.py - dataset loaders (features + labels + hive id).
  • train_population.py, train_varroa_acoustic.py, train_gate_queenless.py - acoustic training.
  • vit4v_infer.py - load the Vit4V checkpoint (+ embed_clip for the vision embedding); run_demo.py - classify a clip / annotate a video.
  • embedding.py - fuse acoustic + vision into the 86-d single vector for Redis k-NN.
  • imagebind_embed.py - optional, import-guarded ImageBind adapter (the real bound space).
  • store/ - pluggable backend: base.py (contract), file_store.py (JSON file, default), redis_store.py (Redis Stack), __init__.py (get_store() factory + USE_REDIS fallback).
  • agents/ - uAgent fleet: hive_agent.py + reasoning.py + tools.py (the 7 hive brains), run_fleet.py (launch them), coordinator.py + run_coordinator.py (the Godfather), connect_mailbox.py (mailbox helper), schema.py.
• scripts/redis_smoke.py - Redis path PASS/FAIL check; bench/redis_bench.py - Redis-vs-file
  • one-index-vs-late-fusion benchmark; notebooks/redis_unimodal_showcase.ipynb - full showcase.
• Root agent/data layer: asi1_agent.py (ASI:One chat), asi1_agent_hosted.py (hosted backup), asi1_client.py (local test), hive_state.py (shared store), godfather.py (apiary analysis), seed_apiary.py (24h data), live_feed.py (live continuation), api_server.py (dashboard API).
• data/ (git-ignored) - verdicts.json: the shared 24h+ store read by the agent, API, and dashboard.
• models/ (git-ignored) - rf_population.pkl, rf_gate.pkl, rf_queenless.pkl, Vit4V_model.pth.
• github/vit4v/ - cloned upstream repo; run_demo.py imports its VideoSegmenter.
• frontend/ - Vite dashboard that renders live hive verdicts (src/, index.html, vite.config.js).
